Trail 1

Product image 1
1 / 7
+2

Trail 1

The Cannondale Trail 1 is your upgrade to next-level mountain biking—light, capable, and confidence-boosting, with the performance you’d expect from a brand trusted by champions. Its lightweight SmartForm C3 Alloy frame pairs with a bump-eating SR Suntour XCM32 fork (100mm / 80mm travel by size) for a responsive, smooth ride on dirt paths and singletrack. A Shimano CUES 10-speed 1x drivetrain keeps shifting simple and reliable, while Tektro hydraulic disc brakes deliver dependable stopping power in all conditions. With size-specific 27.5" or 29" wheels, internal routing, rack and fender mounts, and a 130mm dropper post for instant on-trail adjustments, the Trail 1 is built for fun—whether you're exploring trails, commuting, or cruising around town.

Frameset

Frame:
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, internal cable routing, dropper compatible, hidden kickstand mount, BSA-73, 29"
Fork:
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset
Headset:
Semi-Integrated, 1-1/8"

Drivetrain

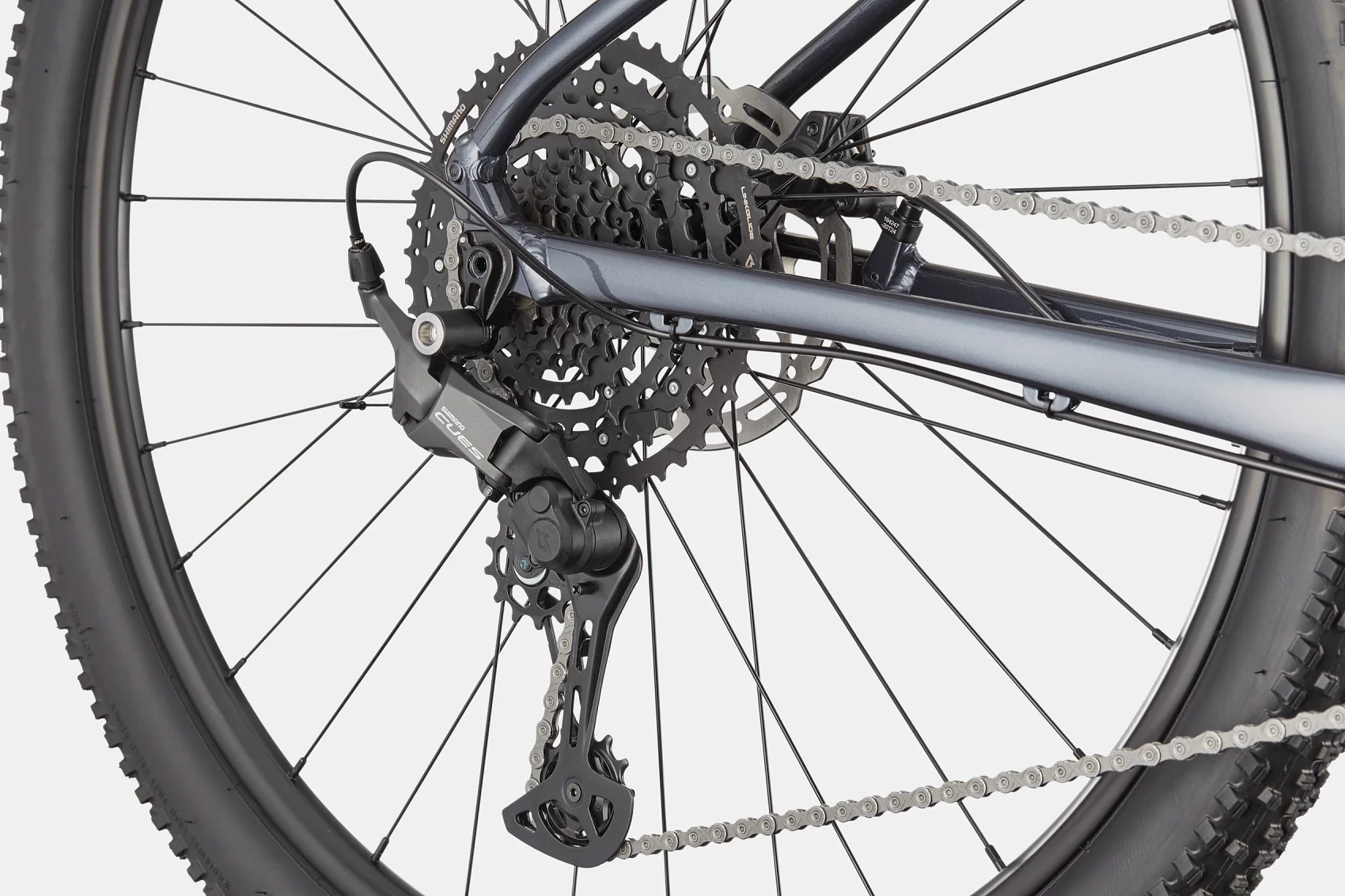

Rear Derailleur:
Shimano CUES U6000, 10-speed
Shifters:
Shimano CUES U6000, 10-speed

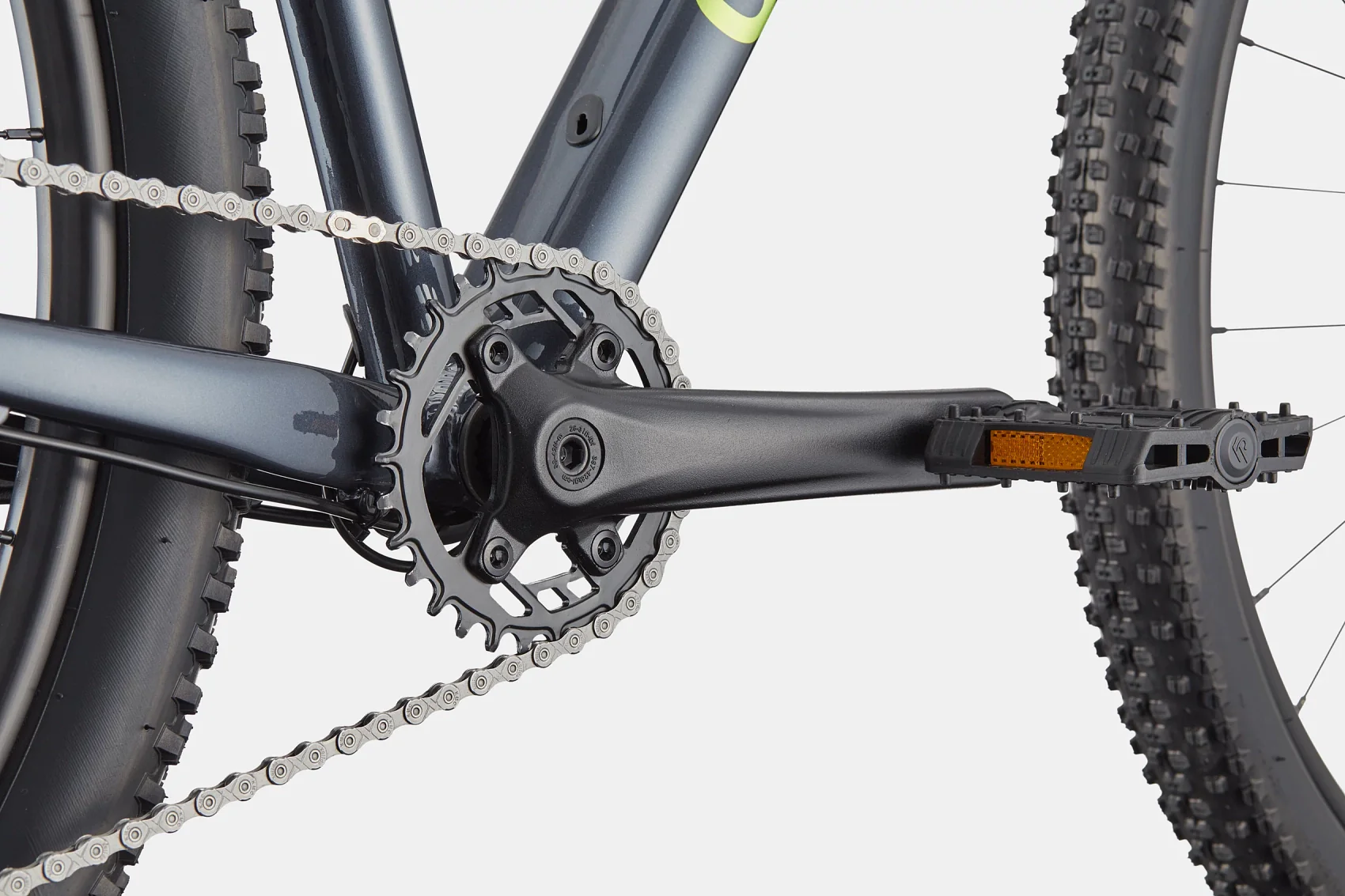

Crank:
Prowheel Charm, 30T
Cassette:
Shimano CUES, 11-48, 10-speed
Chain:
KMC X10, 10-speed
Bottom Bracket:
ProWheel, square taper

Brakes

Brakes:
Tektro M275 hydraulic disc, 160/160mm rotors
Levers:
Tektro Hydraulic Disc

Wheels

Rims:
WTB SX19, 32h
Spokes:
Stainless steel, 14g
Hubs:
(F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x142mm
Front Tire:
Trail Boss, 29x2.25", Comp, 30 TPI
Rear Tire:
Trail Boss, 29x2.25", Comp, 30 TPI

Components

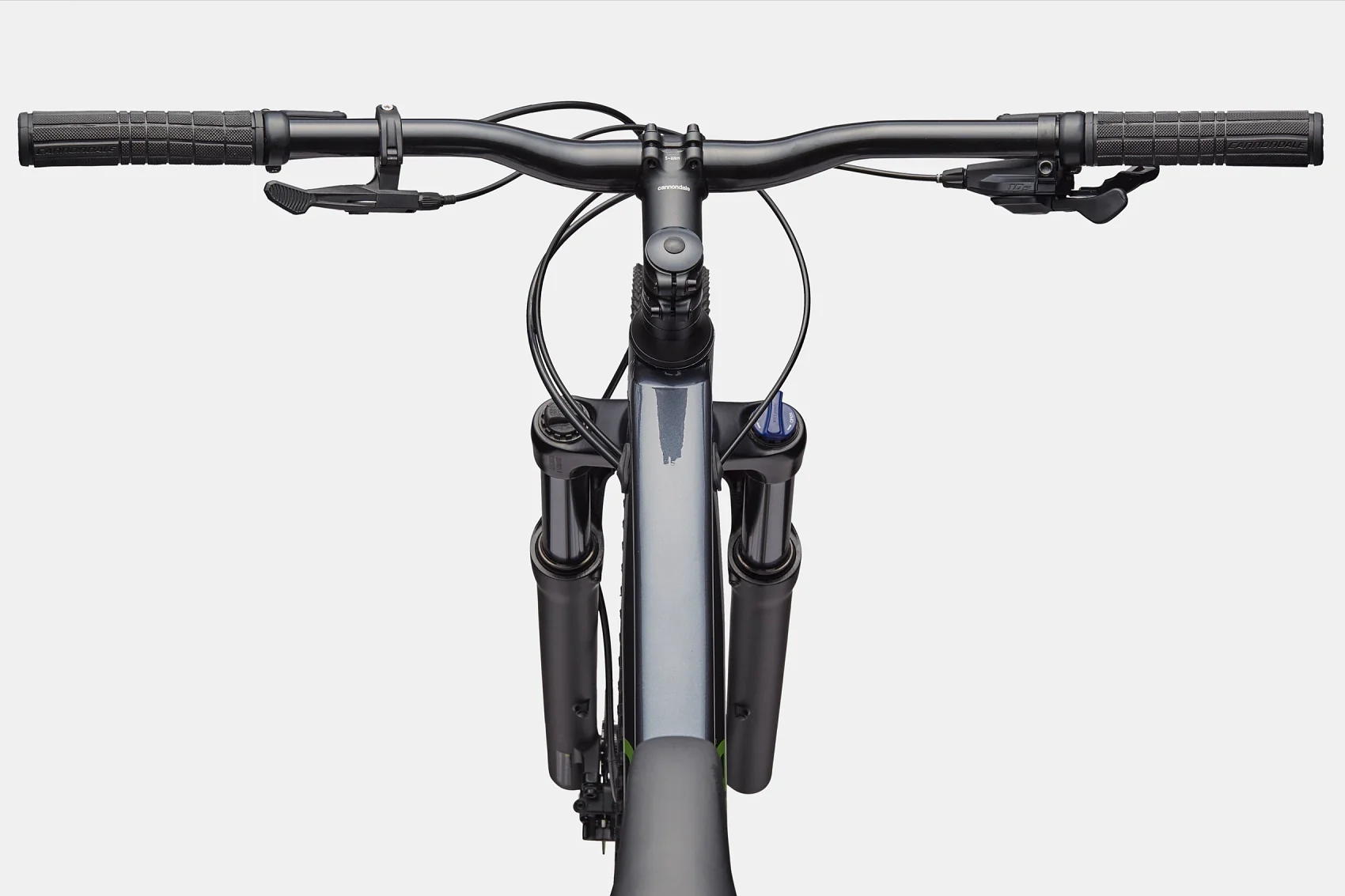

Handlebar:
Cannondale Riser, 6061 Alloy, 720mm, 25mm rise, 8° sweep
Stem:
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips:
Cannondale Dual-Density
Saddle:
Cannondale Trail
Seatpost:
JD Dropper, internal routing, 31.6, 130mm

Note: Specifications are subject to change without notice based on component availability.

Size Height Range
XS
4’6”

5’2”
SM
5’1”

5’4”
MD
5’4”

5’8”
LG
5’7”

6’0”
XL
6’0”

6’3”

The Cannondale Trail 1 is your upgrade to next-level mountain biking—light, capable, and confidence-boosting, with the performance you’d expect from a brand trusted by champions. Its lightweight SmartForm C3 Alloy frame pairs with a bump-eating SR Suntour XCM32 fork (100mm / 80mm travel by size) for a responsive, smooth ride on dirt paths and singletrack. A Shimano CUES 10-speed 1x drivetrain keeps shifting simple and reliable, while Tektro hydraulic disc brakes deliver dependable stopping power in all conditions. With size-specific 27.5" or 29" wheels, internal routing, rack and fender mounts, and a 130mm dropper post for instant on-trail adjustments, the Trail 1 is built for fun—whether you're exploring trails, commuting, or cruising around town.

Frameset

Frame:
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, internal cable routing, dropper compatible, hidden kickstand mount, BSA-73, 29"
Fork:
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset
Headset:
Semi-Integrated, 1-1/8"

Drivetrain

Rear Derailleur:
Shimano CUES U6000, 10-speed
Shifters:
Shimano CUES U6000, 10-speed
Crank:
Prowheel Charm, 30T
Cassette:
Shimano CUES, 11-48, 10-speed
Chain:
KMC X10, 10-speed
Bottom Bracket:
ProWheel, square taper

Brakes

Brakes:
Tektro M275 hydraulic disc, 160/160mm rotors
Levers:
Tektro Hydraulic Disc

Wheels

Rims:
WTB SX19, 32h
Spokes:
Stainless steel, 14g
Hubs:
(F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x142mm
Front Tire:
Trail Boss, 29x2.25", Comp, 30 TPI
Rear Tire:
Trail Boss, 29x2.25", Comp, 30 TPI

Components

Handlebar:
Cannondale Riser, 6061 Alloy, 720mm, 25mm rise, 8° sweep
Stem:
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips:
Cannondale Dual-Density
Saddle:
Cannondale Trail
Seatpost:
JD Dropper, internal routing, 31.6, 130mm

Note: Specifications are subject to change without notice based on component availability.

Size Height Range
XS
4’6”

5’2”
SM
5’1”

5’4”
MD
5’4”

5’8”
LG
5’7”

6’0”
XL
6’0”

6’3”
Select Size
Select Color
From $349.65

Original: $999.00

-65%
Trail 1—

$999.00

$349.65

Description

The Cannondale Trail 1 is your upgrade to next-level mountain biking—light, capable, and confidence-boosting, with the performance you’d expect from a brand trusted by champions. Its lightweight SmartForm C3 Alloy frame pairs with a bump-eating SR Suntour XCM32 fork (100mm / 80mm travel by size) for a responsive, smooth ride on dirt paths and singletrack. A Shimano CUES 10-speed 1x drivetrain keeps shifting simple and reliable, while Tektro hydraulic disc brakes deliver dependable stopping power in all conditions. With size-specific 27.5" or 29" wheels, internal routing, rack and fender mounts, and a 130mm dropper post for instant on-trail adjustments, the Trail 1 is built for fun—whether you're exploring trails, commuting, or cruising around town.

Frameset

Frame:
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, internal cable routing, dropper compatible, hidden kickstand mount, BSA-73, 29"
Fork:
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset
Headset:
Semi-Integrated, 1-1/8"

Drivetrain

Rear Derailleur:
Shimano CUES U6000, 10-speed
Shifters:
Shimano CUES U6000, 10-speed
Crank:
Prowheel Charm, 30T
Cassette:
Shimano CUES, 11-48, 10-speed
Chain:
KMC X10, 10-speed
Bottom Bracket:
ProWheel, square taper

Brakes

Brakes:
Tektro M275 hydraulic disc, 160/160mm rotors
Levers:
Tektro Hydraulic Disc

Wheels

Rims:
WTB SX19, 32h
Spokes:
Stainless steel, 14g
Hubs:
(F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x142mm
Front Tire:
Trail Boss, 29x2.25", Comp, 30 TPI
Rear Tire:
Trail Boss, 29x2.25", Comp, 30 TPI

Components

Handlebar:
Cannondale Riser, 6061 Alloy, 720mm, 25mm rise, 8° sweep
Stem:
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips:
Cannondale Dual-Density
Saddle:
Cannondale Trail
Seatpost:
JD Dropper, internal routing, 31.6, 130mm

Note: Specifications are subject to change without notice based on component availability.

Size Height Range
XS
4’6”

5’2”
SM
5’1”

5’4”
MD
5’4”

5’8”
LG
5’7”

6’0”
XL
6’0”

6’3”
